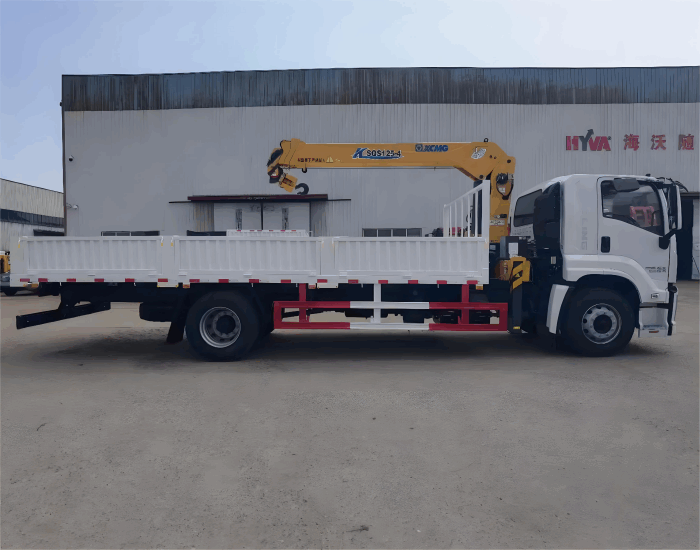

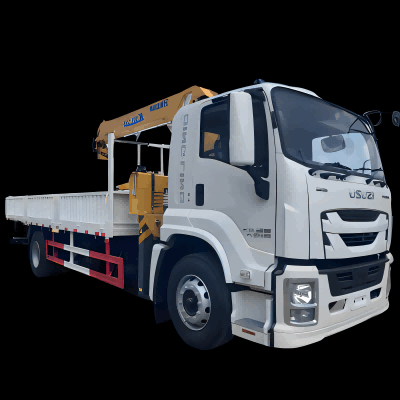

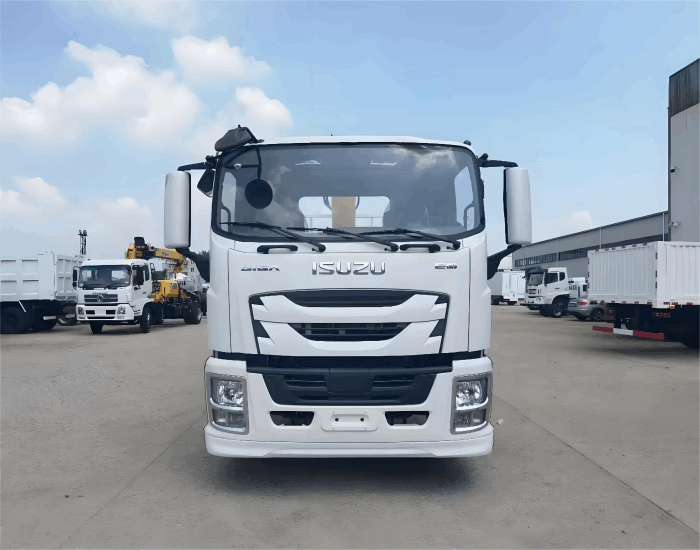

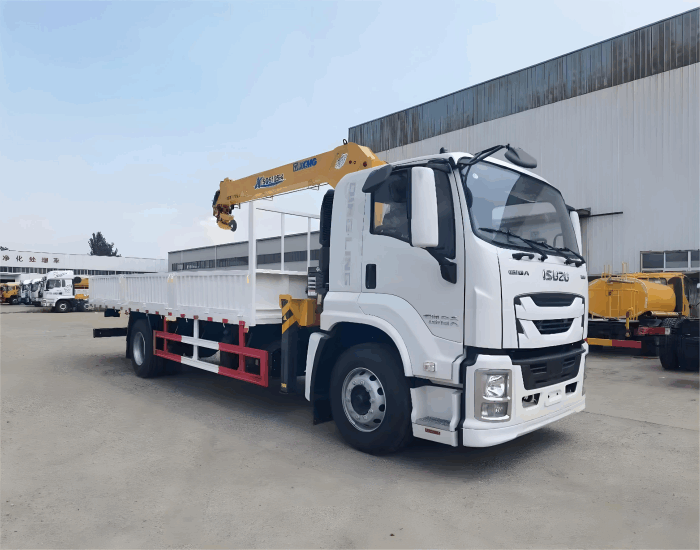

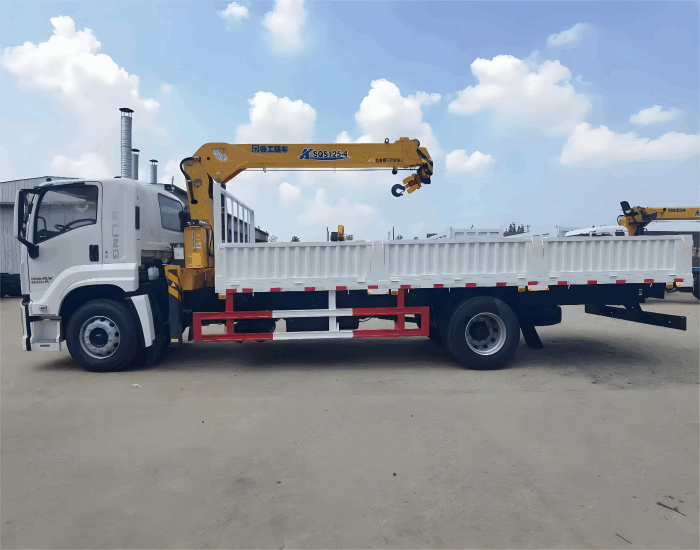

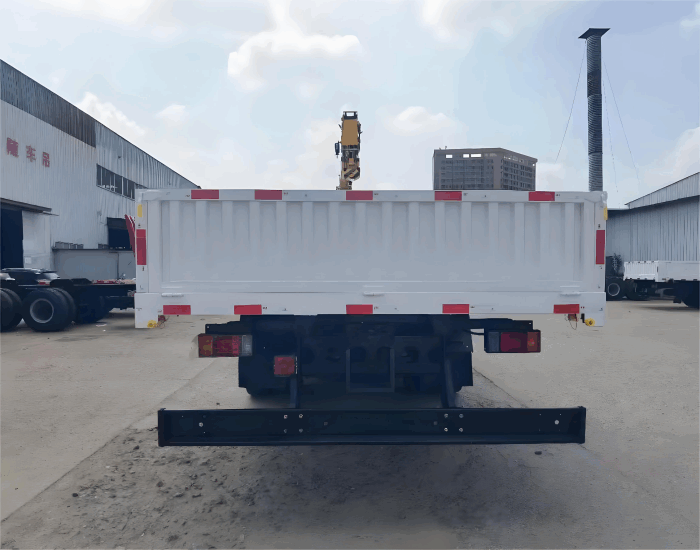

ISUZU GIGA 10 Ton Truck Mounted Crane for Sale

Safe, reliable, stable performance

Isuzu GIGA Cab 10T Crane Truck

Rated maximum lifting weight

150（kw）

Engine power

5550(mm)

Wheelbase

ISUZU GIGA 10 Ton Truck Mounted Crane for Sale

Safe, reliable, stable performance

Rated maximum lifting weight

Isuzu GIGA Cab 10T Crane Truck

Engine power

150（kw）

Wheelbase

5550(mm)

Request a Quote

Features

Related Recommendations

Request a Quote

Features

Versatility

The truck-mounted crane combines the functions of a crane and a transport vehicle, which can meet the needs of lifting and transportation at the same time, improving resource utilization and work efficiency.

Compact Design

Isuzu 10T Crane with 360° Rotating Boom with Wireless Remote Control with High-Pressure Oil Circuit`for Port Container Handling，Urban Construction & Emergency Rescue`Extended Boom for Warehouse Logistics

High security

The truck crane is equipped with a variety of safety devices and protective measures, such as limiters, anti-tipping devices, etc., to ensure safety during operation.

Easy to operate

The operation of the truck crane is relatively simple and can be easily mastered by professionally trained operators.

Overall dimensions（mm）	9000X2530X3700
Box size（mm）	5650X2430x600
Total mass（kg）	18000
Curb Weight（kg）	11280
Rated load mass（kg）	6525
Engine power	ISUZU,151KW
Engine displacement（ml）	5193
Gearbox	ISUZU,6 speed
Maximum lifting mass	10T
Working Radius	14m
Maximum lifting height	16m
Maximum lifting moment	250kN·m
Crane arm	4 sections
Outrigger span	2310mm-5700mm
Rotation angle	360° full rotation
Tilt amplitude range	0°-75°
Operating Mode	Manual + remote control
Tire size	10.00R20
