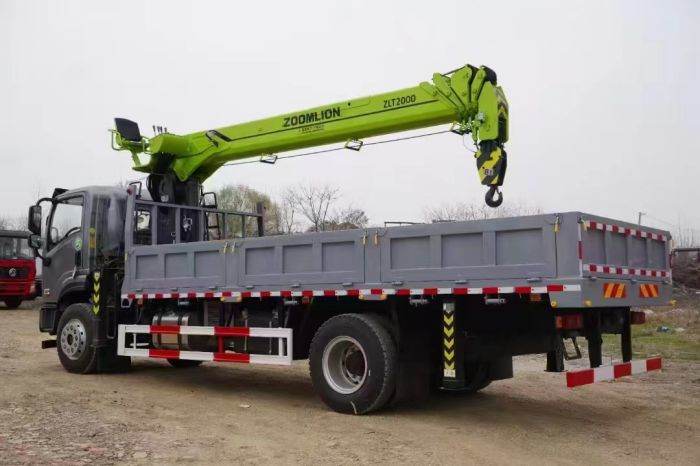

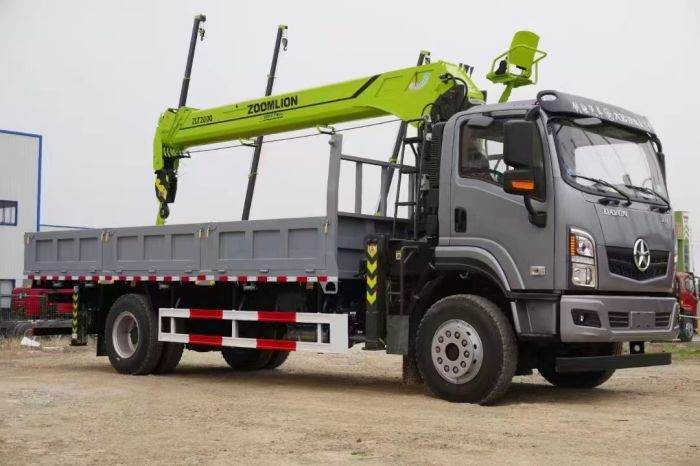

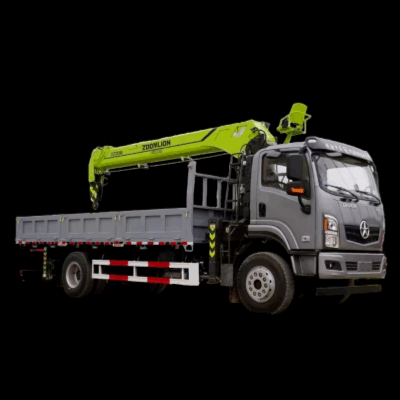

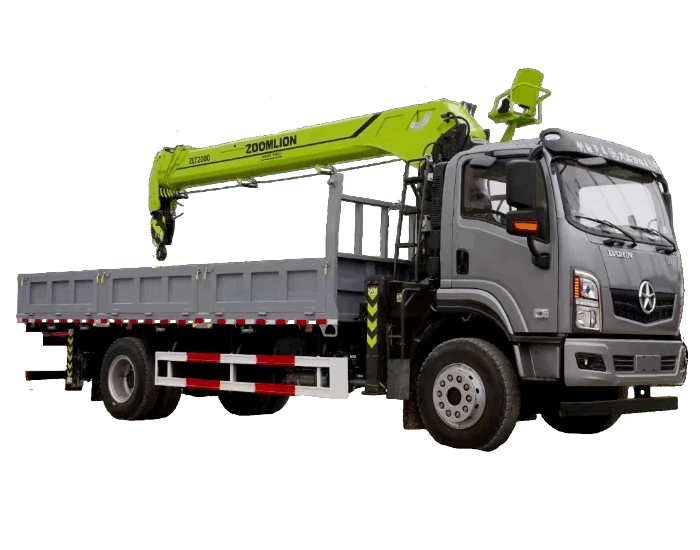

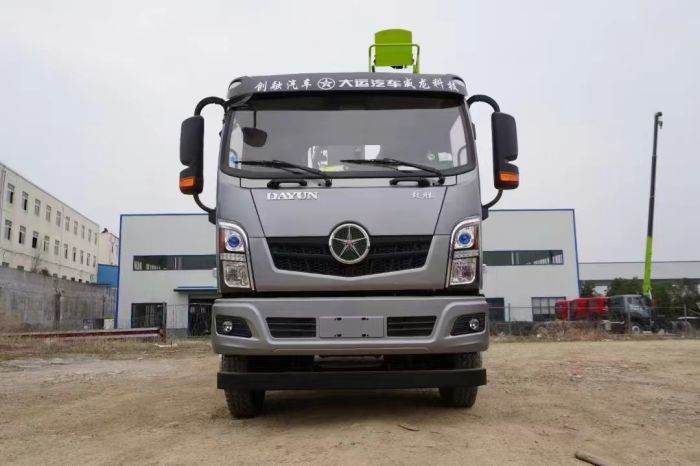

| Overall dimensions（mm） | 9000X2400X3650 |
| Box size（mm） | 6100X2200x550 |
| Total mass（kg） | 16200 |
| Curb Weight（kg） | 9900 |
| Rated load mass（kg） | 6170 |
| Engine power | YCS04200-68,148KW |
| Engine displacement（ml） | 4156 |
| Gearbox | 8 speed |
Maximum lifting mass | 8T |
Working Radius | 18.5m |
Maximum lifting height | 20.1m |
Maximum span of outriggers | 7500mm |
Crane arm | 5 sections |
| Wheelbase | 5150mm |
Rotation angle | 360° full rotation |
Tilt amplitude range | 0°-75° |
Operating Mode | Manual + remote control |
| Tire size | 9.00R20 16PR |
