| Overall dimensions（mm） | 9000X2550X3580 |
| Box size（mm） | 6000X2450x550 |
| Total mass（kg） | 18000 |
| Curb Weight（kg） | 12080 |
| Rated load mass（kg） | 5725 |
| Engine power | YCS6245-60,180KW |
| Engine displacement（ml） | 6234 |
| Gearbox | 10 speed |

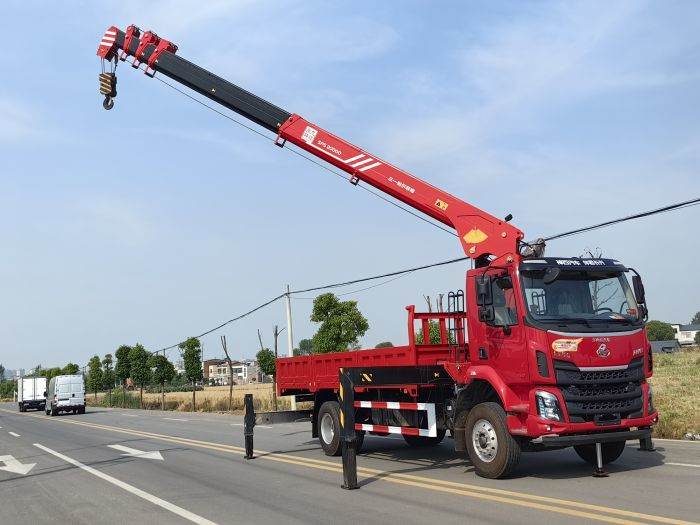

Maximum lifting mass | 10T |
Working Radius | 18.4m |
Maximum lifting height | 20.3m |

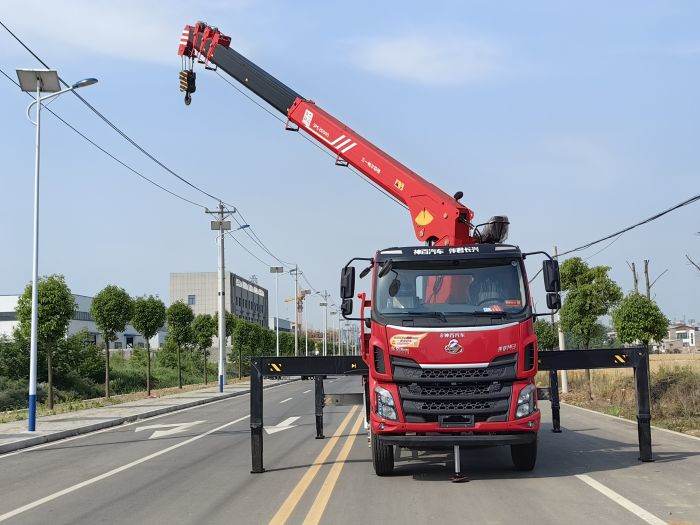

Maximum span of outriggers | 7500mm |
Crane arm | 5 sections |
| Wheelbase | 5100mm |
Rotation angle | 360° full rotation |
Tilt amplitude range | 0°-75° |
Operating Mode | Manual + remote control |
| Tire size | 10.00R20 |
