| Overall dimensions（mm） | 12440X2550X3530 |
| Box size（mm） | \ |
| Total mass（kg） | 53000 |
| Curb Weight（kg） | 52870 |
| Rated load mass（kg） | \ |
| Engine power | Sinotruk,324KW |
| Engine displacement（ml） | 10518 |
| Gearbox | Sinotruk,12 speed |
Maximum lifting mass | 58-92-135T |
Working Radius | 13.5m |
Maximum lifting height | 17.5m |

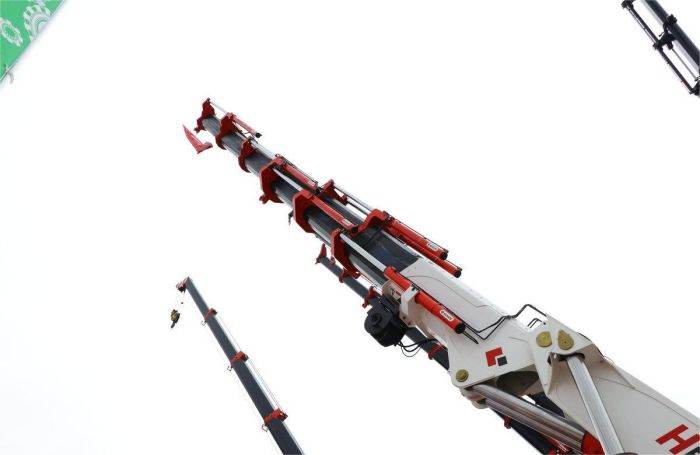

Crane arm | 7 sections |

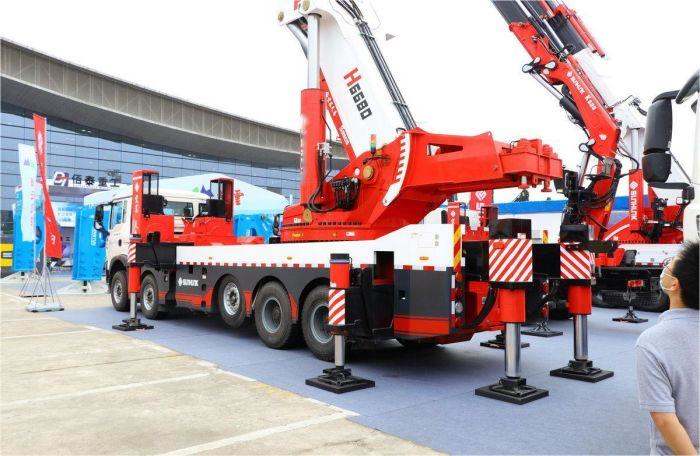

Outrigger span | 1950+3625+1375+1350mm |
Rotation angle | 360° full rotation |
Tilt amplitude range | 0°-75° |
Operating Mode | Manual + remote control |
| Tire size | 385/65R22.5 20PR |
