| Overall dimensions（mm） | 12000X2550X4000 |
| Box size（mm） | 8200X2460x600 |
| Total mass（kg） | 31000 |
| Curb Weight（kg） | 21000 |
| Rated load mass（kg） | 10070 |
| Engine power | Xichai,265KW |
| Engine displacement（ml） | 8600 |
| Gearbox | FAW,10 speed |
Maximum lifting mass | 14T |
Working Radius | 19.5m |
Maximum lifting height | 21.5m |
Maximum span of outriggers | 2200+4300+1350mm |

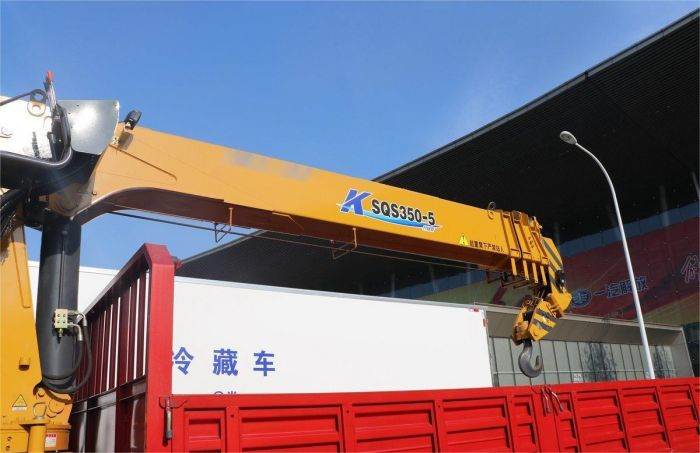

Crane arm | 5 sections |
| Wheelbase | 7600 |
Rotation angle | 360° full rotation |
Tilt amplitude range | 0°-75° |
Operating Mode | Manual + remote control |
Tire size | 11.00R20 |
