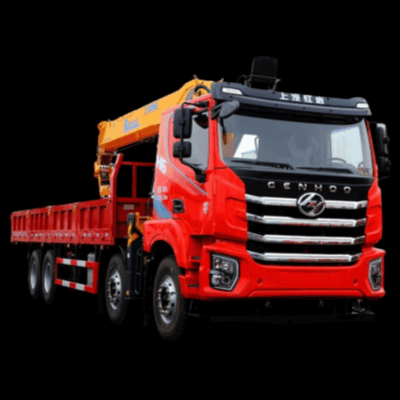

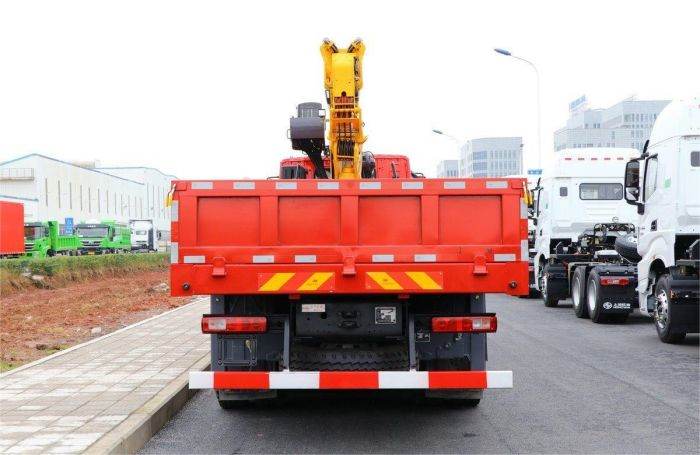

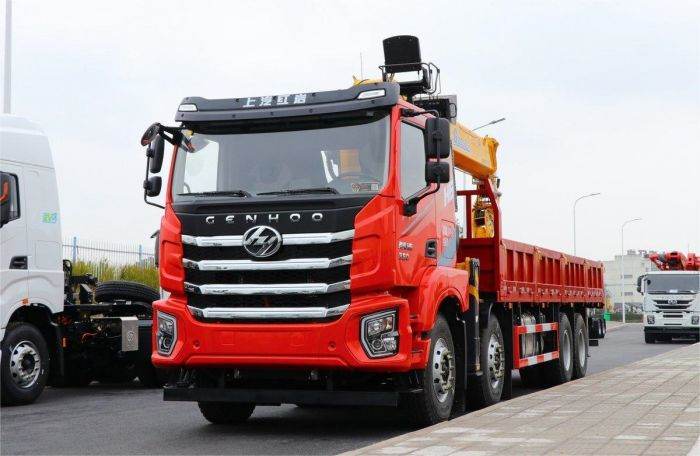

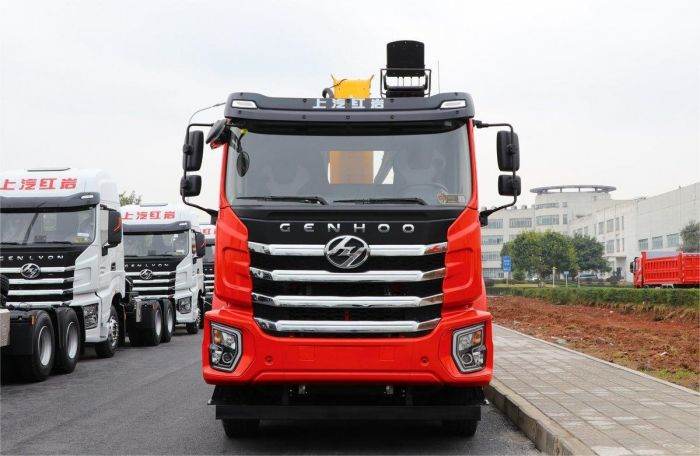

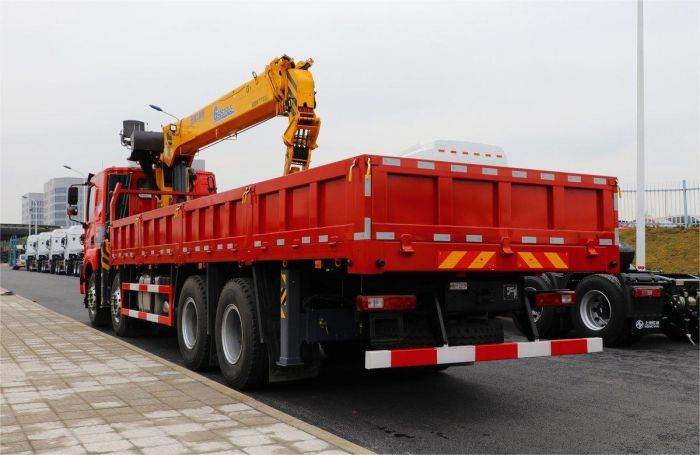

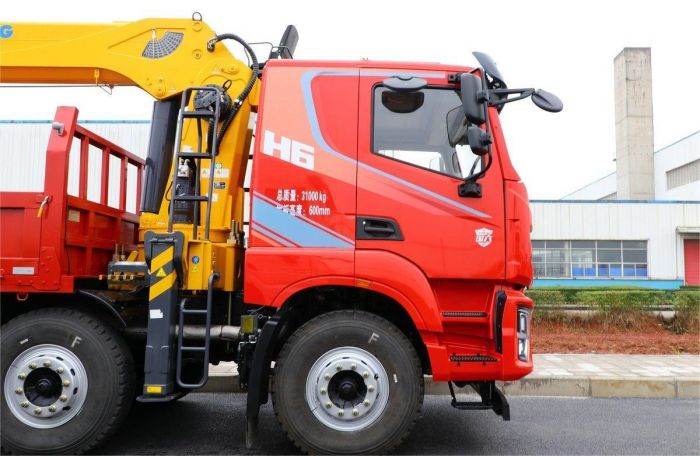

**14 Ton Truck Crane for Sale - Best Price & High Performance!**

High Load Capacity，Durable & Low Maintenance，Easy to Operate

8T-20T

Hoisting weight

257kw

Engine power

2150+4250+1400mm

Wheelbase

**14 Ton Truck Crane for Sale - Best Price & High Performance!**

High Load Capacity，Durable & Low Maintenance，Easy to Operate

Hoisting weight

8T-20T

Engine power

257kw

Wheelbase

2150+4250+1400mm

Request a Quote

Features

Related Recommendations

Request a Quote

Features

Easy to operate

The operation of the truck crane is relatively simple and can be easily mastered by professionally trained operators.

Save manpower

The multi-purpose function of the truck-mounted crane reduces the need for additional equipment and personnel, thus saving labor costs.

Good mobility

Truck mounted cranes are usually mounted on truck chassis, inheriting the good maneuverability of trucks and can be moved flexibly on various roads and sites.

High safety

The truck crane is equipped with a variety of safety devices and protective measures, such as limiters, anti-tipping devices, etc., to ensure safety during operation.

Overall dimensions（mm）	11750X2550X3140
Box size（mm）	8200X2460x600
Total mass（kg）	31000
Curb Weight（kg）	21000
Rated load mass（kg）	10070
Engine power	Yuchai,257KW
Engine displacement（ml）	7700
Gearbox	Fast,12 speed
Maximum lifting mass	14T
Working Radius	19.5m
Maximum lifting height	21.5m
Maximum span of outriggers	7600mm
Crane arm	5 sections
Outrigger span	2150+4250+1400mm
Rotation angle	360° full rotation
Tilt amplitude range	0°-75°
Operating Mode	Manual + remote control
Tire size	12.00R20 18PR
