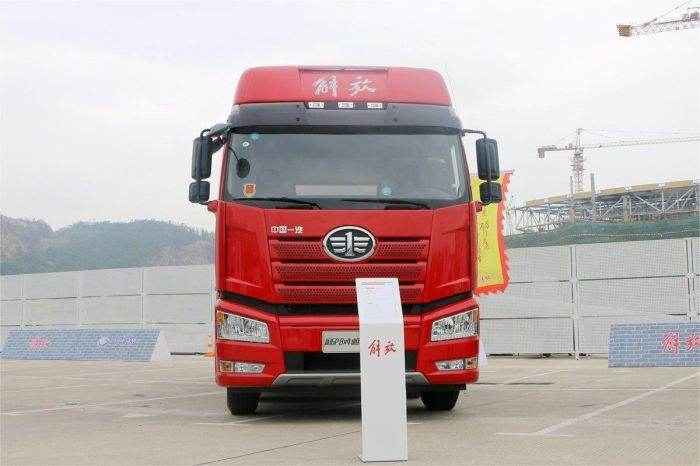

| Chassis brand | FAW |
| Body dimensions(mm) | 11530*2550*3680 |

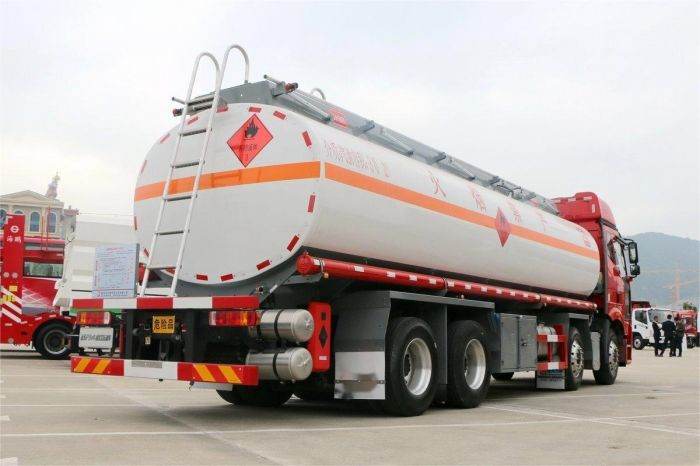

| Tank size(mm) | 8600*2250*1550 |
| Total mass(kg) | 31990 |
| Vehicle quality(kg) | 11605 |
| Rated load mass(kg) | 20200 |
| Engine Model | Xichai CA6DM2-39E51, 287kw |
| Engine displacement(ml) | 11050 |
| Gearbox | CA12TAX210M 12 speed |
| Wheelbase(mm) | 2100+4000+1350 |
| Number of spring leaves: | Air suspension 3/3/-/- |
| Front wheel braking | Disc brakes |
| Tire specifications: | 295/80R22.5 |
| Tank Volume(m³) | 23.7 |
| Tank Thickness（mm） | 5 |
| Tank Body Material | 304 Stainless Steel/Q235 Carbon Steel |
| anti wave plate | Yes |

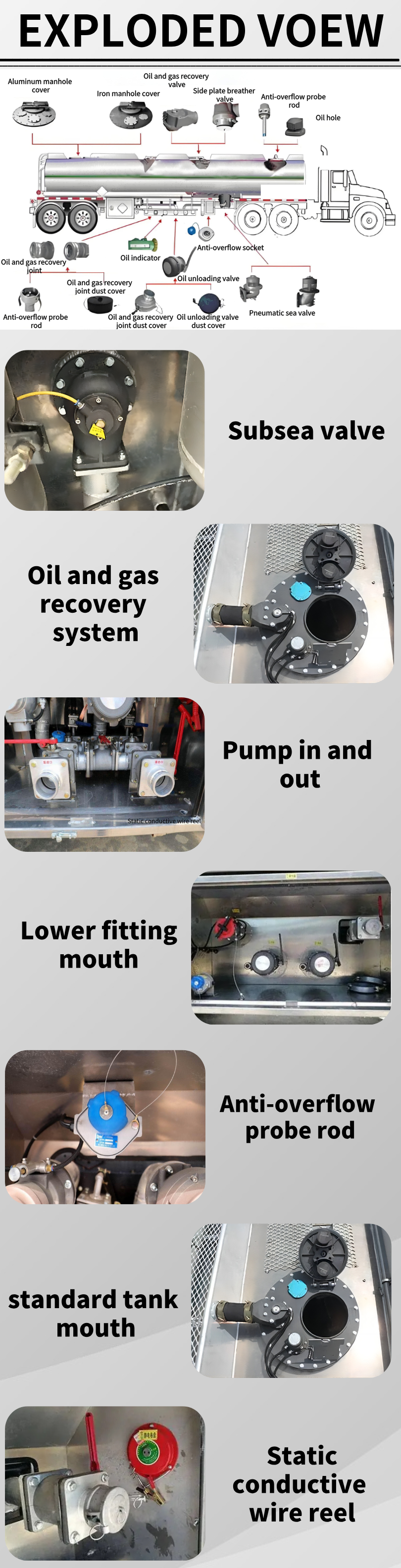

| Oil gas recovery unit | Yes |
| Emergency shutoff valve | Yes |
| Anti-overflow alarm device | Yes |
| Operating Ambient Temperature（°C） | -20~~45 |
| Gear oil pump flow(m³/h) | 60 |
| Fuel loading method | Bottom filling |
| Toolbox | Customized to your needs |
| Mouth of tank | European standard |
| Maximum speed(km/h) | 80 |
