| Overall dimensions（mm） | 5000X2100X2650 |
| Box size（mm） | 5600X2450x550 |
| Total mass（kg） | 4495 |
| Curb Weight（kg） | 2700 |
| Rated load mass（kg） | 1800 |
| Engine power | Q23-132E60,97KW |
| Engine displacement（ml） | 2300 |
| Gearbox | Fast,5 speed |
Maximum lifting mass | 2T |
Working Radius | 4.8m |
Maximum lifting height | 5.8m |

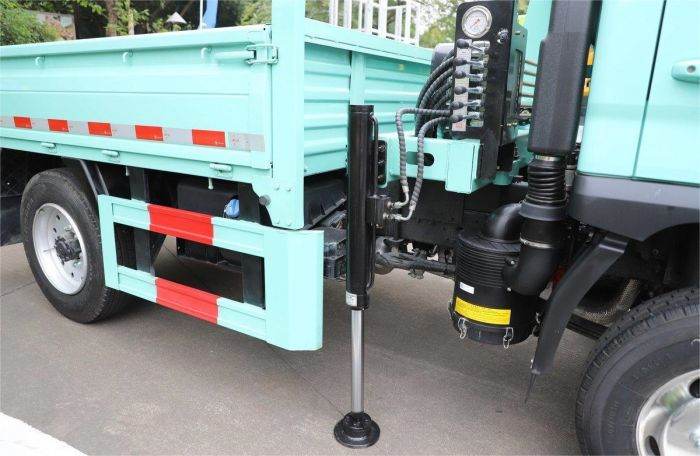

Maximum span of outriggers | 2500mm |
Crane arm | 3 sections |
| Wheelbase | 2700mm |
Rotation angle | 360° full rotation |
Tilt amplitude range | 0°-75° |
Operating Mode | Manual + remote control |
| Tire size | 6.50R16LT 10PR |
