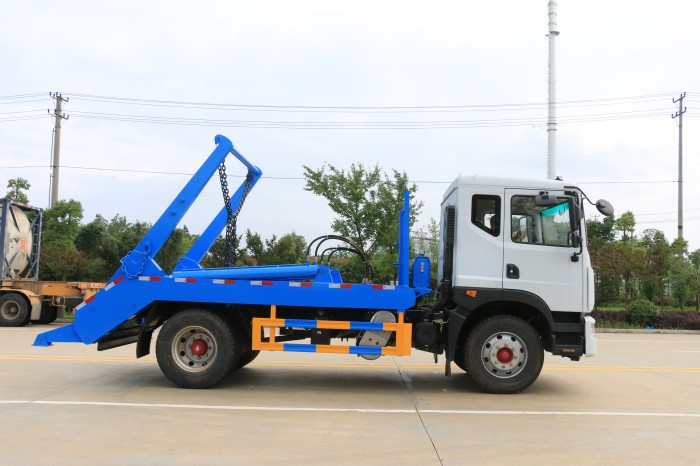

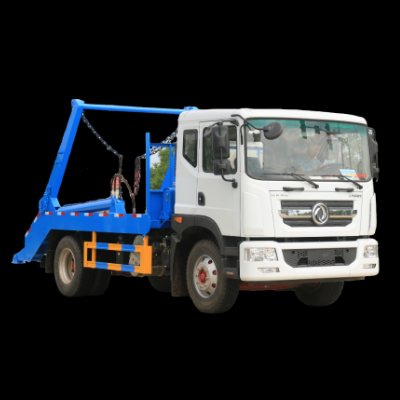

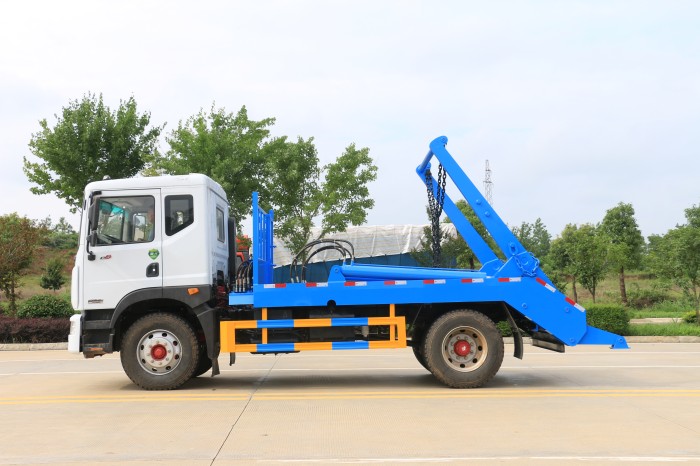

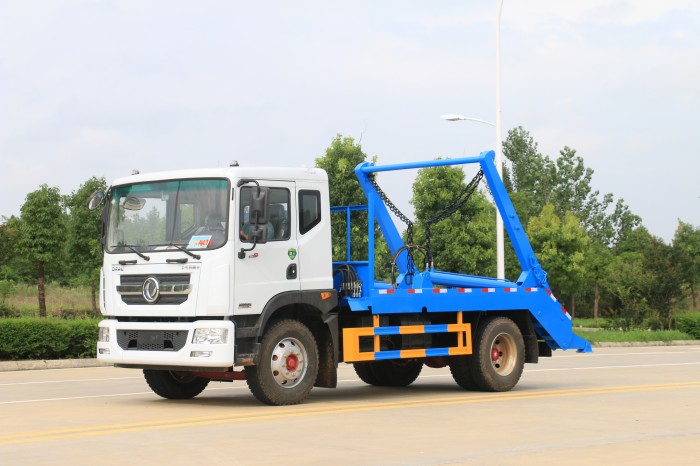

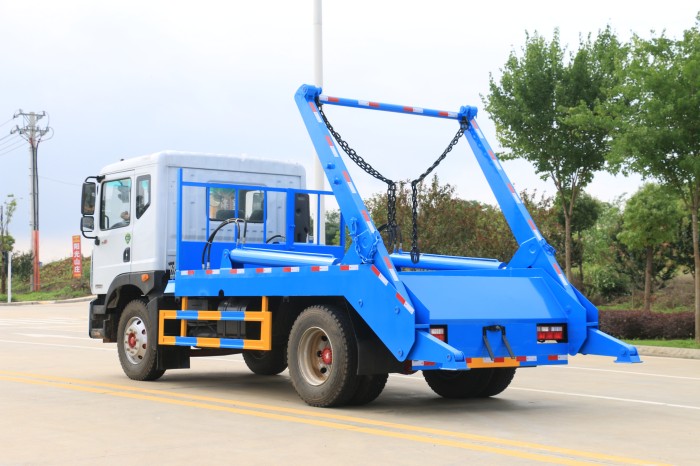

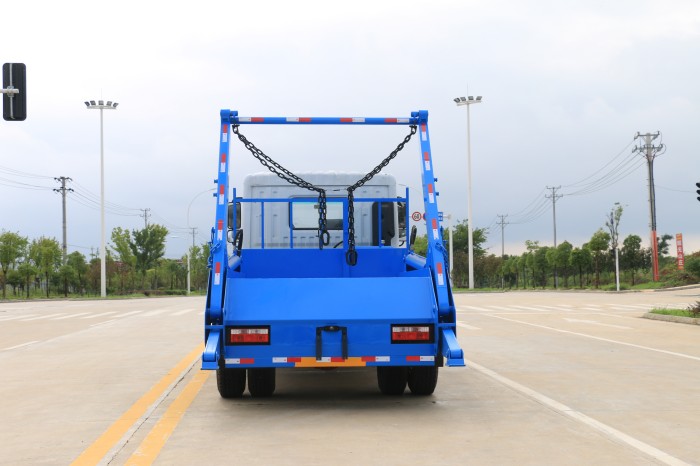

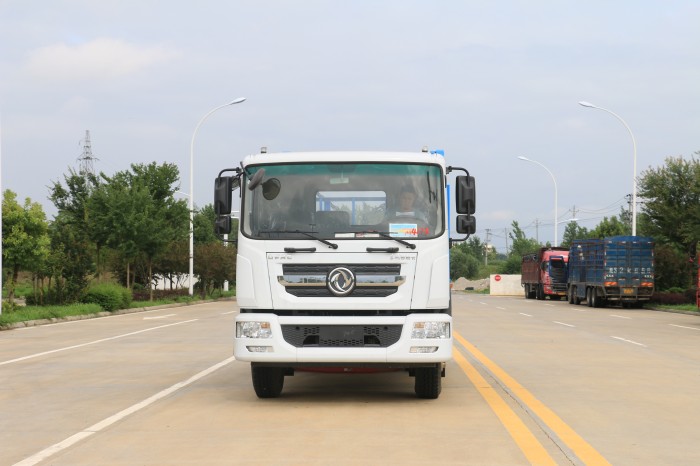

Dongfeng D9 10m³ swing arm garbage truck

Suitable for short-distance cleaning and transportation of urban garbage.

230HP，6.2L

Engine power and displacement

3950

Wheelbase (mm)

Universal trash can

Compatible garbage collection bin types

Dongfeng D9 10m³ swing arm garbage truck

Suitable for short-distance cleaning and transportation of urban garbage.

Engine power and displacement

230HP，6.2L

Wheelbase (mm)

3950

Compatible garbage collection bin types

Universal trash can

Request a Quote

Features

Related Recommendations

Request a Quote

Features

one-button operation

One vehicle can be equipped with a variety of garbage collection trucks to improve vehicle utilization and reduce empty-load waste during return trips. The entire action process uses an advanced logic control circuit, and the required action can be achieved with just one button.

Simple and efficient, reliable and durable

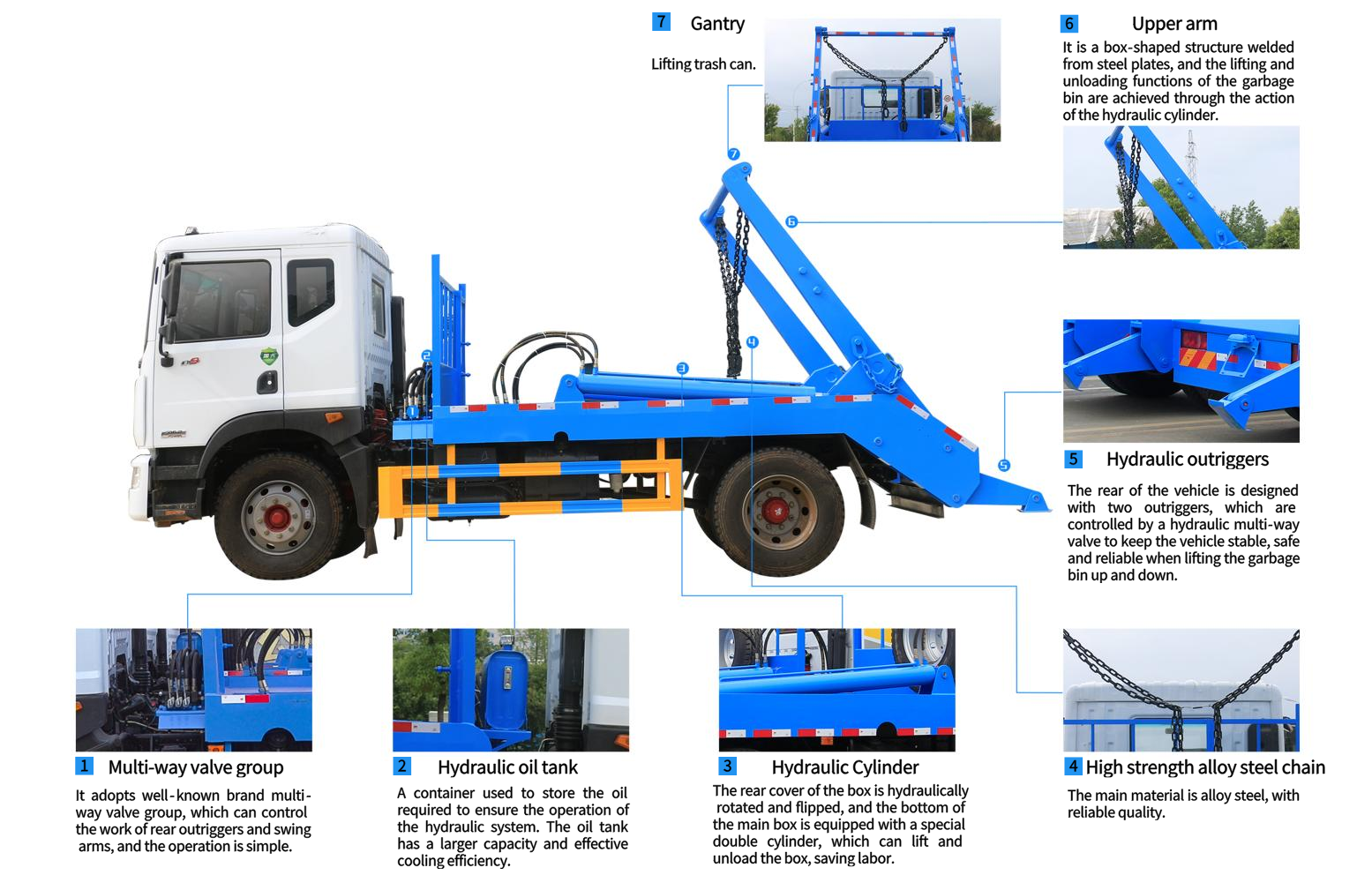

The hydraulic cylinder movement is controlled by a manual hydraulic multi-way valve, which is simple to operate and easy to maintain. The hydraulic components such as the oil tank, oil pump, multi-way reversing valve, one-way throttle valve, oil cylinder, oil pipe, etc. are all of high-quality brands, and the hydraulic system is stable, reliable and durable.

Strong adaptability, suitable for complex road conditions

The chassis usually adopts a reinforced truck, which is suitable for various road conditions in cities, towns, construction sites, etc. It can be used to collect domestic waste, construction waste, industrial waste, etc.

Flexible and efficient, suitable for a variety of trash bins

The hydraulic swing arm mechanism can quickly hook, hoist and unload standard garbage bins (such as 3-5 cubic meters of mobile garbage bins). It is suitable for places without fixed garbage stations, such as residential areas, streets, construction sites, etc.

Brand name	Dong Feng
Overall Dimensions（mm）	9800×2550×3355
Matching garbage collection box volume (m³)	8-10
Single cycle time（s）	Up and down once, working cycle time ≤ 60S
Unloading time（s）	≤40
Standard Configuration	Double-bar cylinder, multi-way valve hydraulic control
Control System	Manual control (optional manual automatic operation)
Rated load capacity (kg)	9620
Gearbox	Automatic 8 speed
Total mass（kg）	16200
Curb Weight（kg）	6450
Maximum speed（km/h）	105
Tire specifications	9.00R20 16PR
