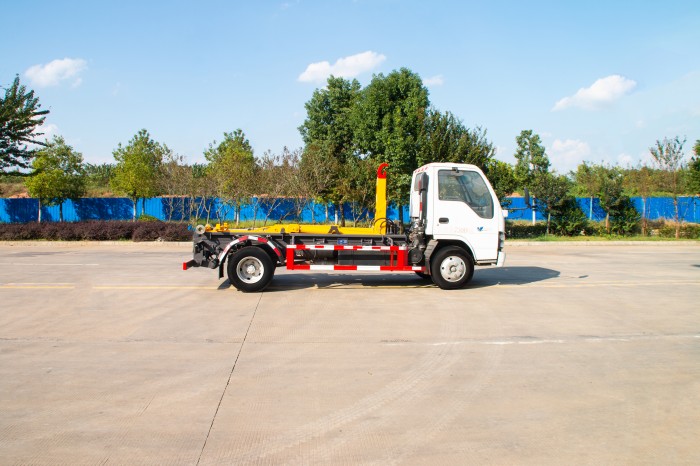

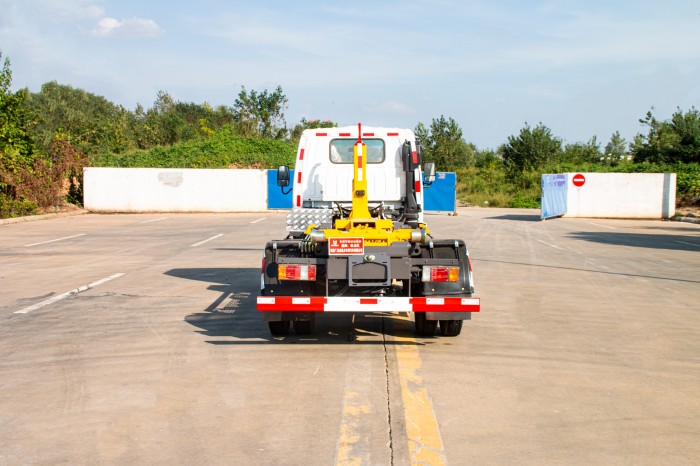

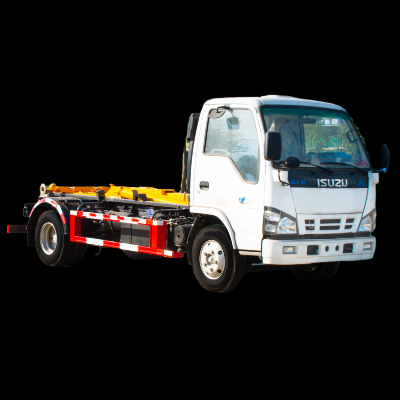

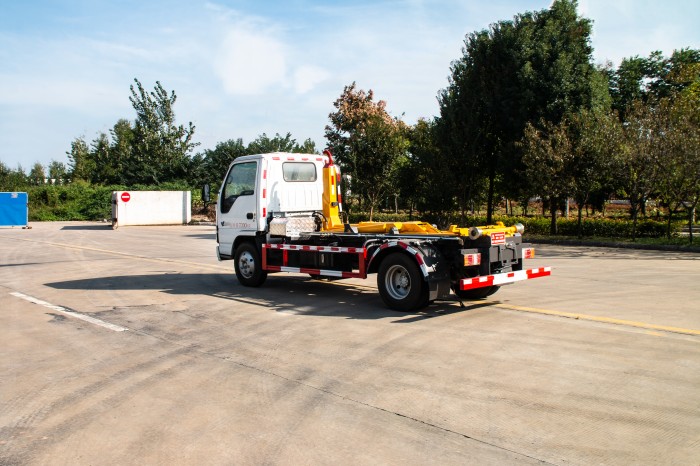

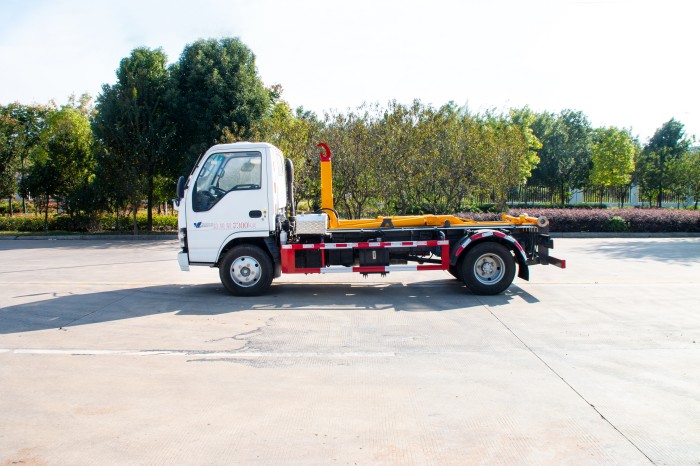

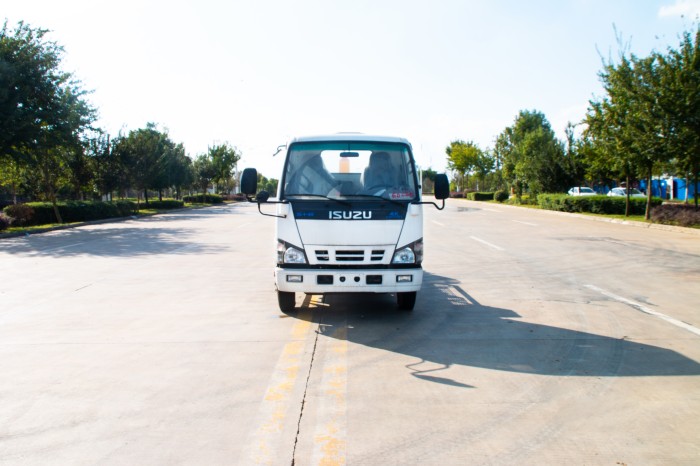

Isuzu 6m³ hook arm garbage truck for sale

Small garbage truck, can transport urban domestic garbage

120HP,3.0L

Engine power and displacement

5450×2000×2300

Overall dimensions(mm)

Daily life waste collection box/construction material waste collection box

Compatible garbage collection bin types

Isuzu 6m³ hook arm garbage truck for sale

Small garbage truck, can transport urban domestic garbage

Engine power and displacement

120HP,3.0L

Overall dimensions(mm)

5450×2000×2300

Compatible garbage collection bin types

Daily life waste collection box/construction material waste collection box

Request a Quote

Features

Related Recommendations

Request a Quote

Features

Powerful & Efficient Engine

Features a robust 120 HP Isuzu engine (e.g.,4KH1 model), ensuring strong performance and excellent fuel efficiency for demanding waste collection routes

Optimized Waste Capacity

Equipped with a high-volume 6 cubic meter (m³) / , maximizing payload per trip for cost-effective operations.

Reliable Isuzu Chassis

Built on a durable and proven Isuzu commercial truck chassis, renowned for its reliability, low maintenance costs, and long service life in tough municipal environments.

Fast & Robust Hook Lift System

Utilizes a heavy-duty hydraulic hook lift mechanism enabling rapid container exchange (approx. 30 seconds) and handling capacities exceeding standard 6m³ bins with ease.

Brand name	ISUZU
Overall Dimensions（mm）	5450×2000×2200,2300(mm)
Matching garbage collection box volume (m³)	3-5
Single cycle time（s）	Up and down once, working cycle time ≤ 40S
Unloading time（s）	≤30
Standard Configuration	Double-bar cylinder, multi-way valve hydraulic control
Engine power	88kw
Rated load capacity (kg)	3680
Gearbox	Automatic 5 speed
Total mass（kg）	7300
Curb Weight（kg）	3490
Maximum speed（km/h）	95
Tire specifications	7.00R16LT 14PR
