| Chassis brand | Sinotruk |
| Body dimensions(mm) | 11920*2500*3200 |
| Tank size(mm) | 8950*2490*1650 |
| Total mass(kg) | 32000 |
| Vehicle quality(kg) | 11250 |
| Rated load mass(kg) | 20620 |
| Engine Model | MC07H.35-60, 275kw |
| Engine displacement(ml) | 7360 |
| Gearbox | HW13709XSTC2 gearbox + HW70 flange power take-off |
| Number of spring leaves: | Air suspension 3/3/-/- |

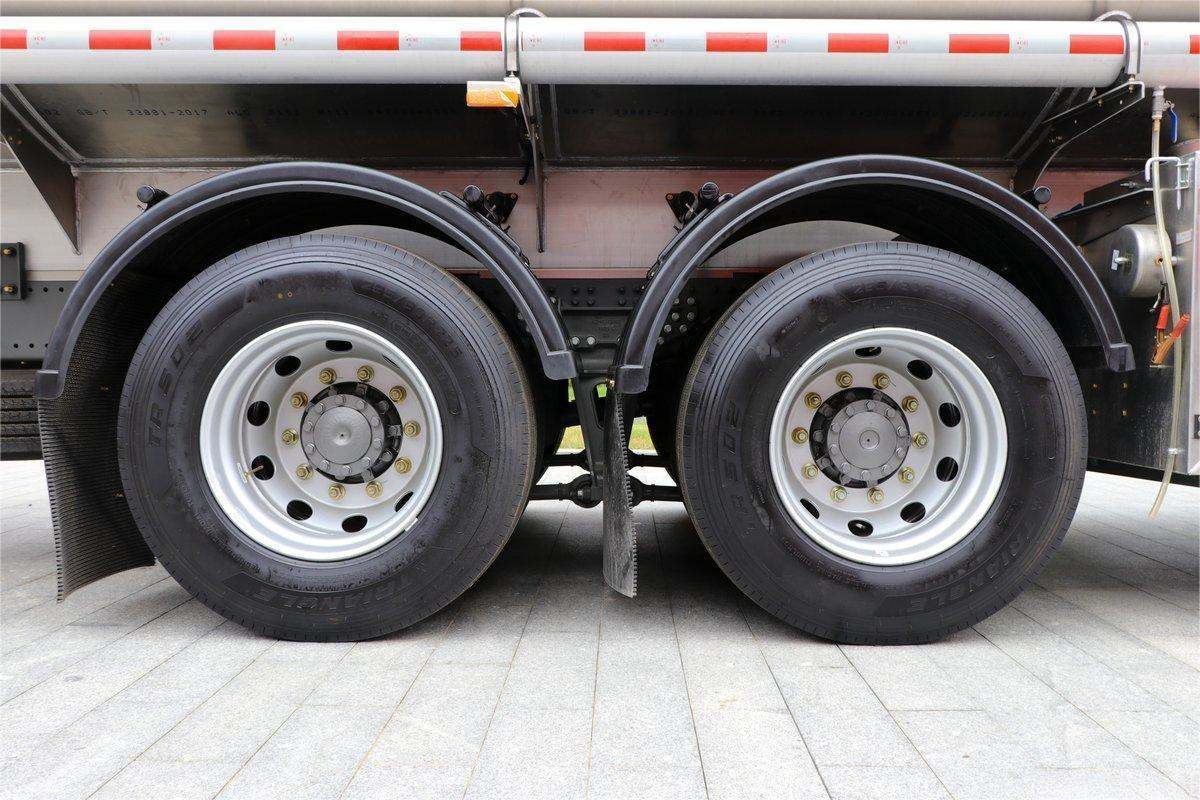

| Tire specifications: | 295/80R22.5 |
| Tank Volume(m³) | 26 |
| Tank Thickness（mm） | 5 / 6 |
| Tank Body Material | 304 Stainless Steel/Q235 Carbon Steel |
| anti wave plate | Yes |
| Oil gas recovery unit | Yes |
| Emergency shutoff valve | Yes |
| Anti-overflow alarm device | Yes |
| Operating Ambient Temperature（°C） | -20~~45 |
| Gear oil pump flow(m³/h) | 60 |
| Fuel loading method | Bottom filling |

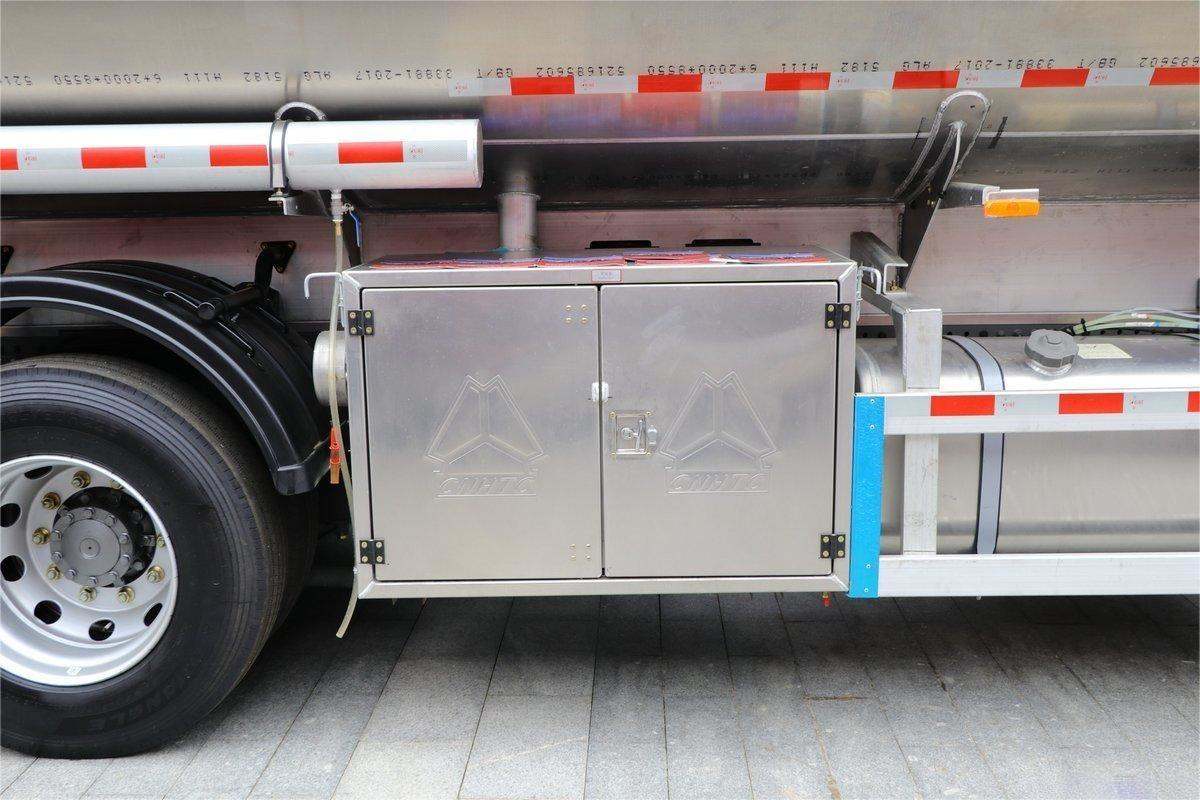

| Toolbox | Customized to your needs |
| Mouth of tank | European standard |
