hook-arm garbage truck with 12m³ building materials garbage special transport box_Kaylex Truck

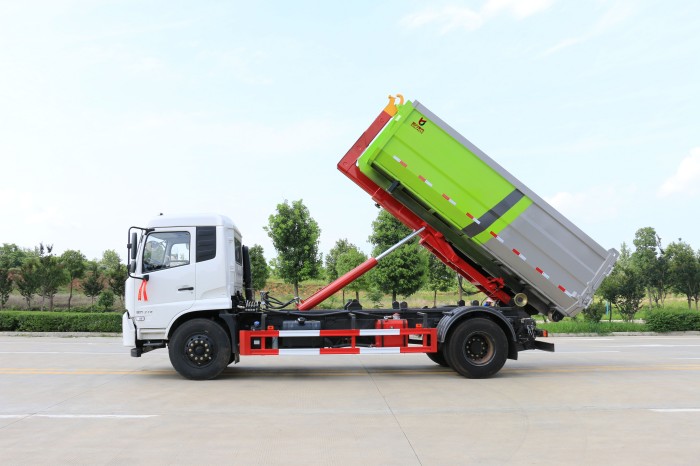

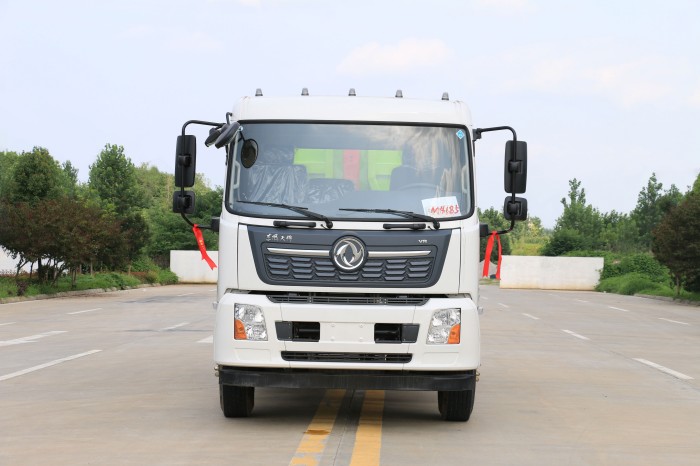

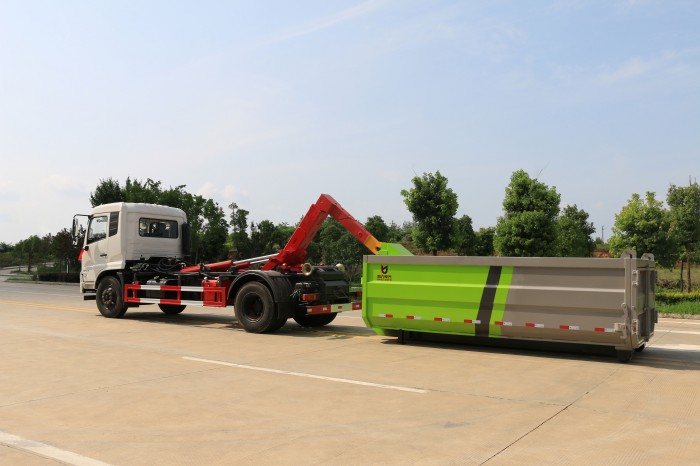

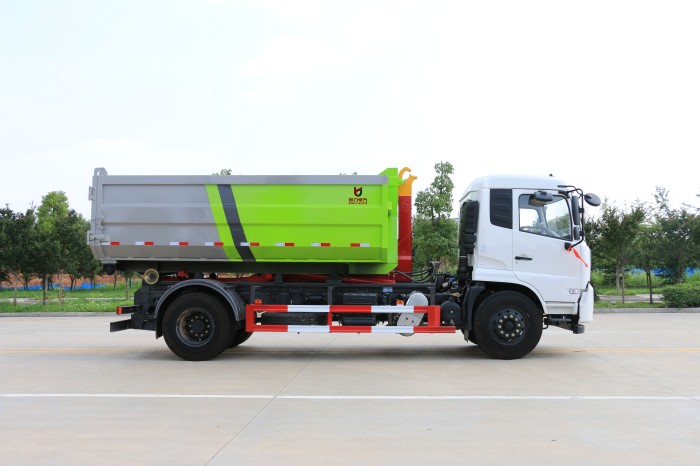

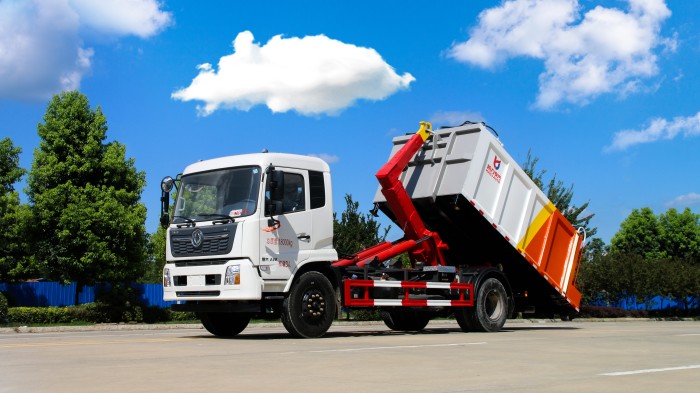

hook-arm garbage truck with 12m³ building materials garbage special transport box

Can be matched with different types and models of garbage bins

230HP,6.2L

Engine power and displacement

4700

Wheelbase (mm)

Daily life waste collection box/construction material waste collection box

Compatible garbage collection bin types

hook-arm garbage truck with 12m³ building materials garbage special transport box

Can be matched with different types and models of garbage bins

Engine power and displacement

230HP,6.2L

Wheelbase (mm)

4700

Compatible garbage collection bin types

Daily life waste collection box/construction material waste collection box

Request a Quote

Features

Related Recommendations

Request a Quote

Features

Flexible and efficient, one truck with multiple boxes

The hook-arm garbage truck can be equipped with multiple garbage bins (garbage hoppers), and one vehicle head can serve multiple garbage collection points, realizing the "one vehicle, multiple bins" cycle operation and improving transportation efficiency.

Easy to operate, high degree of automation

It adopts hydraulic system control, and the driver can complete the loading, unloading and dumping of the garbage bin through the joystick in the cab, without manual handling, reducing labor intensity. It is suitable for use with compression garbage bins to increase the garbage loading capacity.

Strong adaptability and wide range of uses

It is suitable for garbage removal in urban streets, residential areas, construction sites, rural areas and other places. Some models can also be used to transport bulk goods, construction waste, etc., with diverse functions.

Cost saving, economical and practical

Compared with fixed garbage trucks, hook-arm trucks only need to replace the garbage bin to continue working, which reduces the vehicle's idle time and reduces fuel and labor costs. It is easy to maintain, has a low failure rate, and is suitable for long-term use.

Brand name	Dong Feng
Overall Dimensions（mm）	7050,7250,7210×2510×3130,3230,3360(mm)
Matching garbage collection box volume (m³)	13
Single cycle time（s）	Up and down once, working cycle time ≤ 40S
Unloading time（s）	≤30
Standard Configuration	Double-bar cylinder, multi-way valve hydraulic control
Engine power	169kw
Rated load capacity (kg)	9675
Gearbox	Automatic 8 speed
Total mass（kg）	18000
Curb Weight（kg）	8130
Maximum speed（km/h）	88
Tire specifications	10.00R20 18PR
