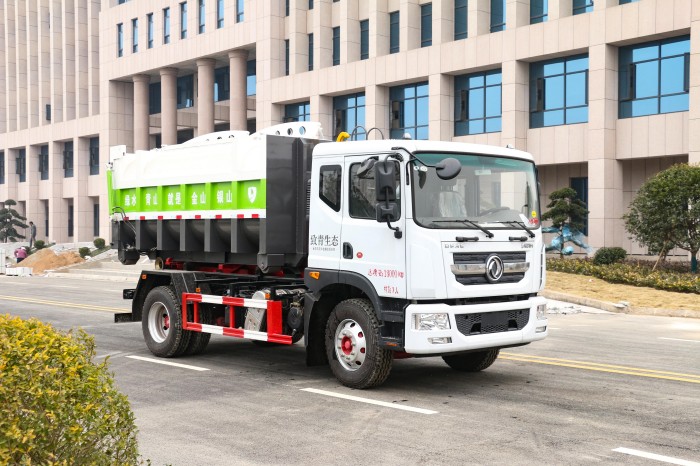

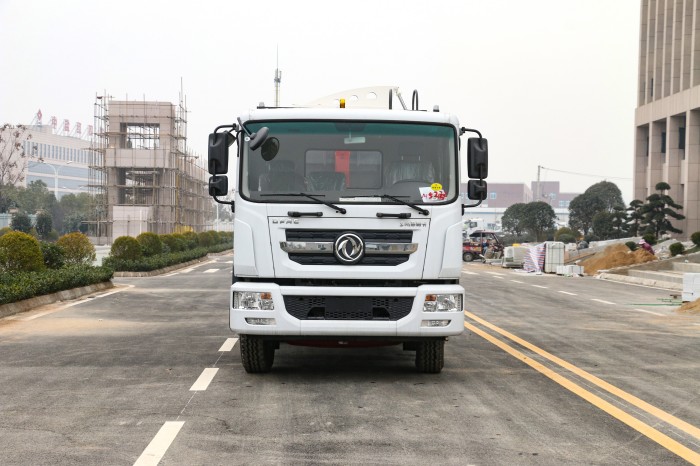

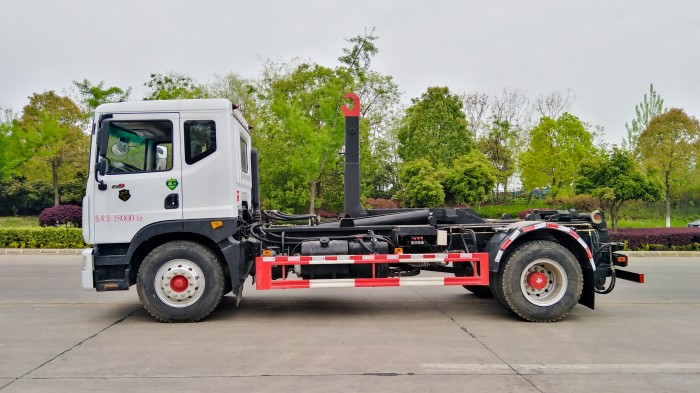

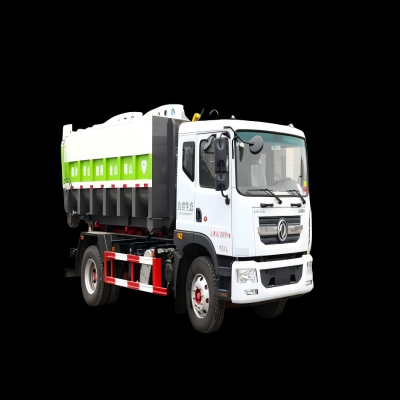

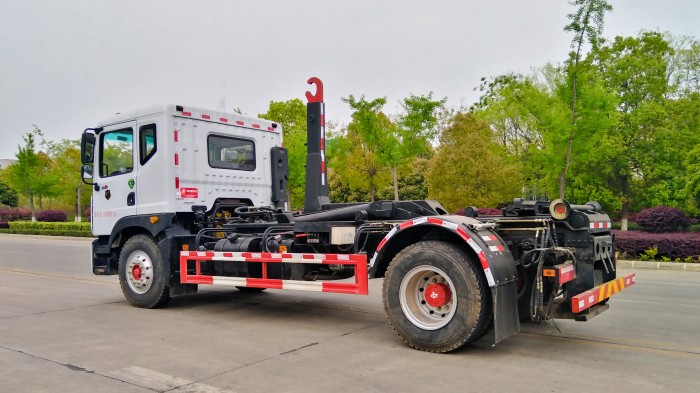

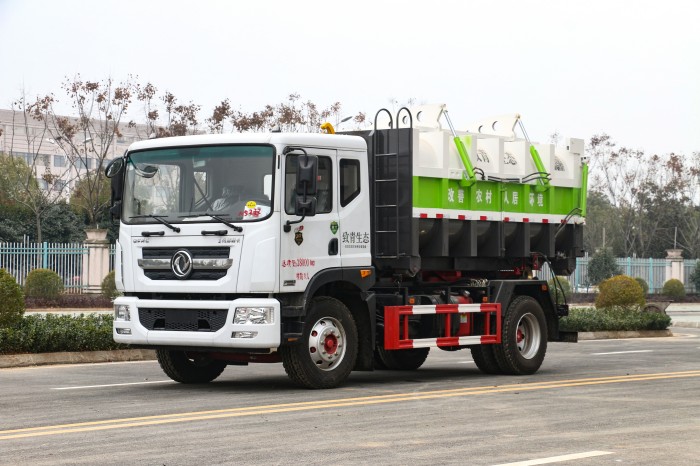

Dongfeng 10-12m³ hook loader_Kaylex Truck

Dongfeng 10-12m³ hook loader

Applicable to all kinds of life scenes, communities, streets, commercial areas

230HP,6.2L

Engine power and displacement

7050×2500×3100

Overall dimensions(mm)

Daily life waste collection box/construction material waste collection box

Compatible garbage collection bin types

Dongfeng 10-12m³ hook loader

Applicable to all kinds of life scenes, communities, streets, commercial areas

Engine power and displacement

230HP,6.2L

Overall dimensions(mm)

7050×2500×3100

Compatible garbage collection bin types

Daily life waste collection box/construction material waste collection box

Request a Quote

Features

Related Recommendations

Request a Quote

Features

Easy to operate, high degree of automation

It adopts hydraulic system control, and the driver can complete the loading, unloading and dumping of the garbage bin through the joystick in the cab, without manual handling, reducing labor intensity. It is suitable for use with compression garbage bins to increase the garbage loading capacity.

Strong adaptability and wide range of uses

It is suitable for garbage removal in urban streets, residential areas, construction sites, rural areas and other places. Some models can also be used to transport bulk goods, construction waste, etc., with diverse functions.

Cost saving, economical and practical

Compared with fixed garbage trucks, hook-arm trucks only need to replace the garbage bin to continue working, which reduces the vehicle's idle time and reduces fuel and labor costs. It is easy to maintain, has a low failure rate, and is suitable for long-term use.

Environmental protection and hygiene

Trash bins are usually sealed to prevent garbage from scattering and odor from spreading, reducing environmental pollution.Some models are equipped with compression functions to reduce the volume of garbage and improve transportation efficiency.

Brand name	Dong feng
Overall Dimensions（mm）	7050,6500,7200×2500,2550×3100,3160(mm)
Matching garbage collection box volume (m³)	10-12
Single cycle time（s）	Up and down once, working cycle time ≤ 40S
Unloading time（s）	≤30
Standard Configuration	Double-bar cylinder, multi-way valve hydraulic control
Engine power	147kw
Rated load capacity (kg)	10920
Gearbox	Automatic 6 speed
Total mass（kg）	18000
Curb Weight（kg）	6950
Maximum speed（km/h）	105
Tire specifications	295/80R22.5 18PR
