| Brand name | Dong Feng |
| Overall Dimensions（mm） | 5995×2090×2810 |
| Matching garbage collection box volume (m³) | 4-6 |
| Single cycle time（s） | Up and down once, working cycle time ≤ 60S |
| Unloading time（s） | ≤40 |

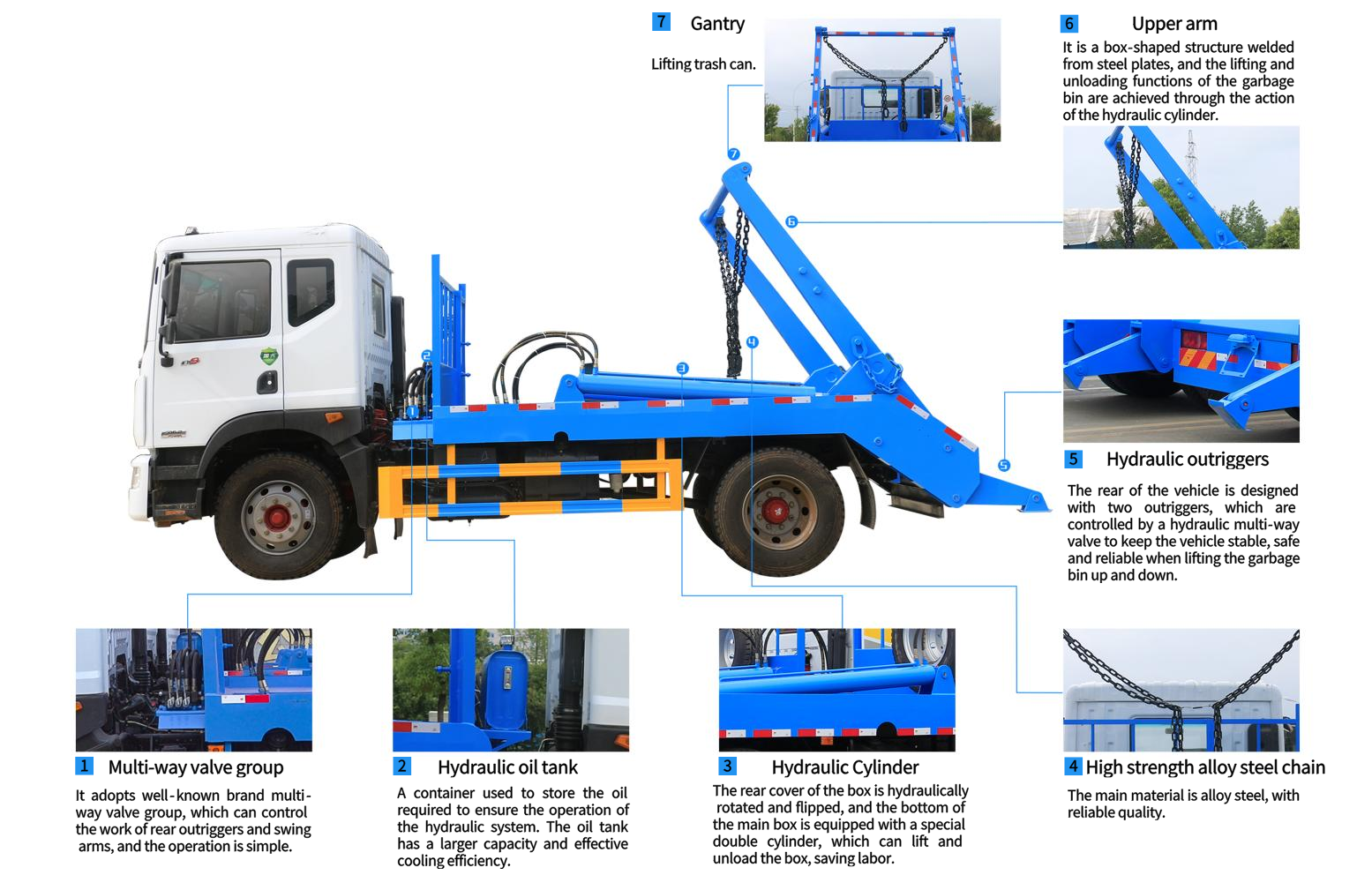

| Standard Configuration | Double-bar cylinder, multi-way valve hydraulic control |
| Control System | Manual control (optional manual automatic operation) |
| Rated load capacity (kg) | 3460 |
| Gearbox | Automatic 6 speed |
| Total mass（kg） | 7360 |
| Curb Weight（kg） | 3770 |
| Maximum speed（km/h） | 110 |
| Tire specifications | 7.00R16 |
