Technical specifications
| Dimensions（mm） | 5998X2090X3350 |
| Total mass（kg） | 4495 |
| Curb Weight（kg） | 4365 |
| Number of Axles | 2 |
| Number of Tires | 6 |
| Tire Size | 7.00R16LT |
| Wheelbase (mm) | 3360 |
| Gearbox Model | 5-Speed Manual |
Maximum Operating Height(m) | 28-33m |
Maximum Operating Radius Amplitude(m) | 14.5m |
Leg Span (transverse/longitudinal) | 5600/4400(mm) |
Outrigger | Front V rear H type |
Slewing Gear | 360 ° Rotation |

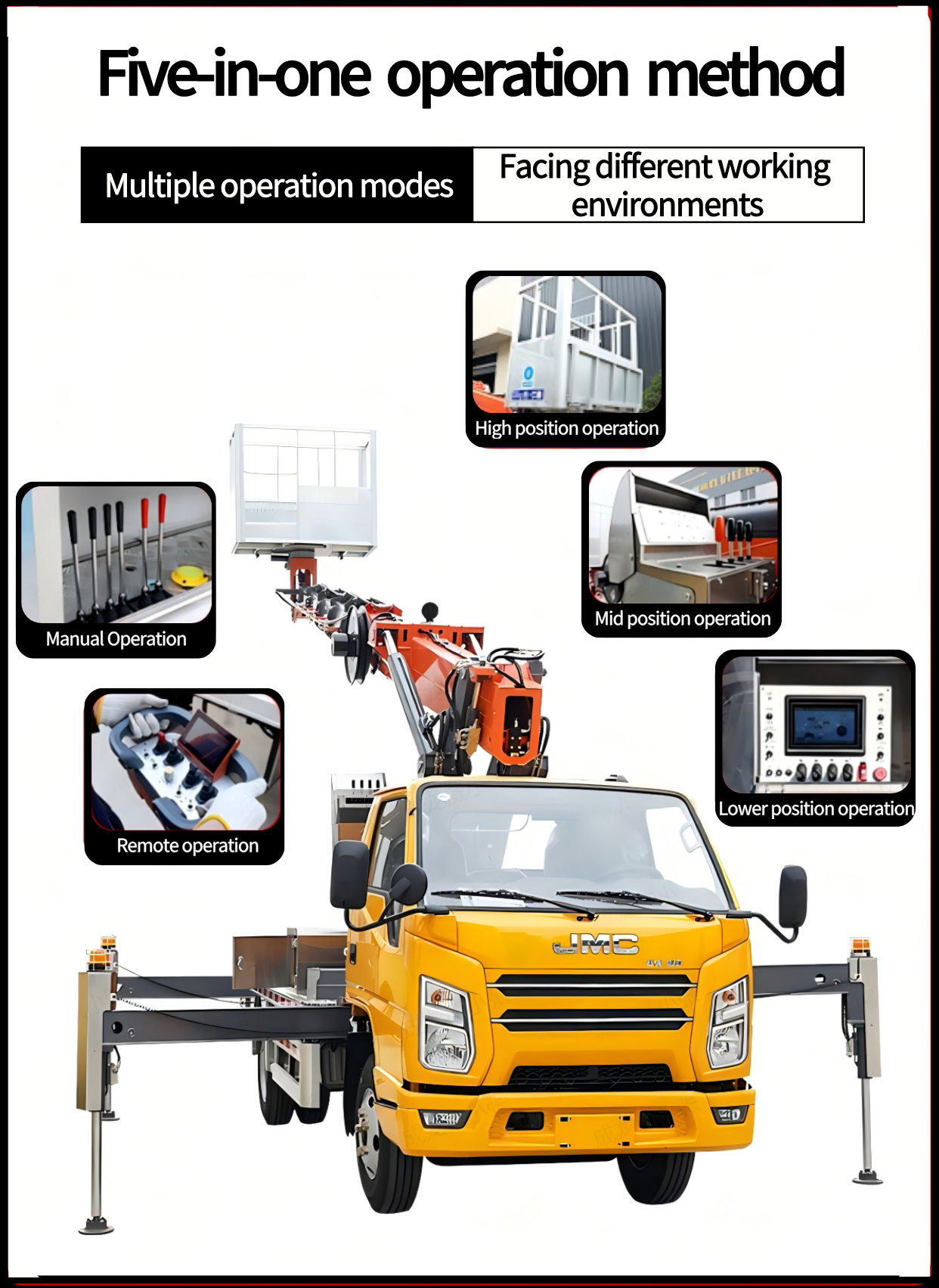

Working Mode | Manual+remote control |
Rated load of hanging basket (kg) | 200 |
Fuel Type | Diesel Oil |
Engine Power(kw) | 89 |
| Displacement (ml) | 2999 |
